Types of Foundations in Building Construction

Foundation is the most important structural component of any building. It forms the base that transfers the load of the structure safely to the ground. A well-designed foundation ensures the stability, durability, and safety of a building throughout its service life.

Selecting the right type of foundation depends on several factors, including soil conditions, building loads, groundwater level, seismic considerations, construction cost, and site constraints.

In this detailed guide, you’ll learn about the different types of foundations used in building construction, their applications, advantages, disadvantages, and selection criteria.

Follow Us

What is a Foundation?

A foundation is the lowest part of a structure that transfers the loads from the building safely to the supporting soil or rock.

Types of Foundations in Building Construction

Its primary purpose is to:

• Support the entire building
• Transfer structural loads safely
• Prevent differential settlement
• Improve structural stability
• Resist lateral loads such as wind and earthquakes
• Protect against soil movement and moisture

Functions of Foundation

The major functions of a foundation include:

• Safely distribute structural loads
• Prevent excessive settlement
• Increase structural stability
• Prevent sliding and overturning
• Protect against frost action
• Resist uplift forces
• Provide a level base for construction

Classification of Foundations

Foundations are broadly classified into two categories.

Foundation Type	Suitable Depth	Typical Application
Shallow Foundation	Up to about 3 m	Low-rise buildings
Deep Foundation	Greater than 3 m	High-rise buildings, bridges, heavy structures

Types of Foundations

Types of Shallow Foundations

Shallow foundations are used when the soil near the ground surface has sufficient bearing capacity.

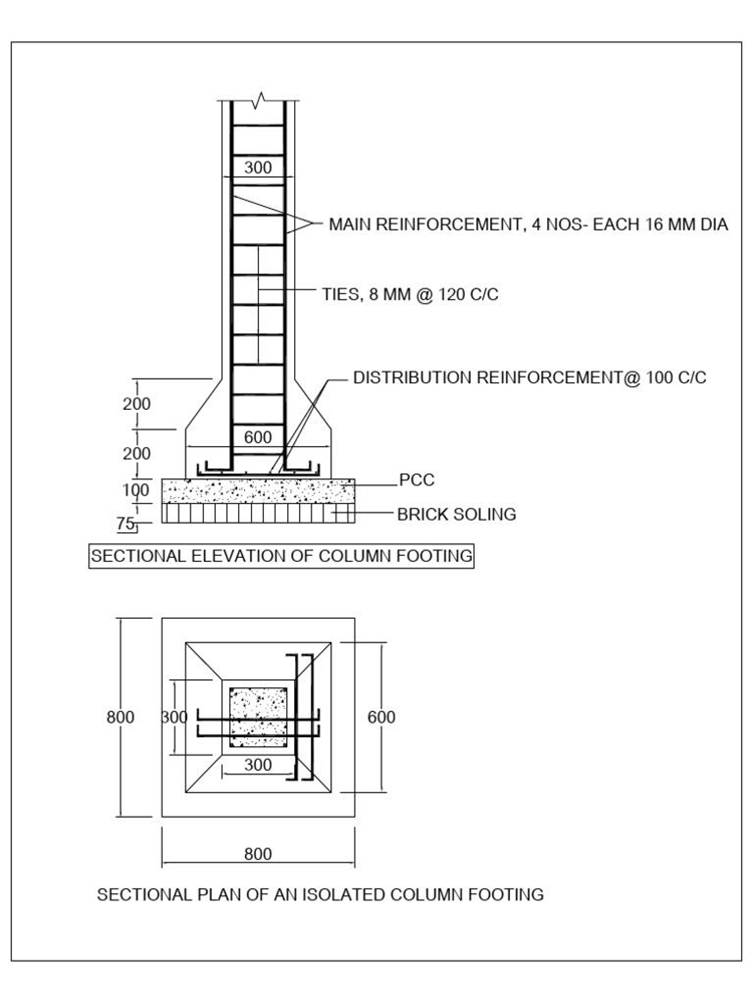

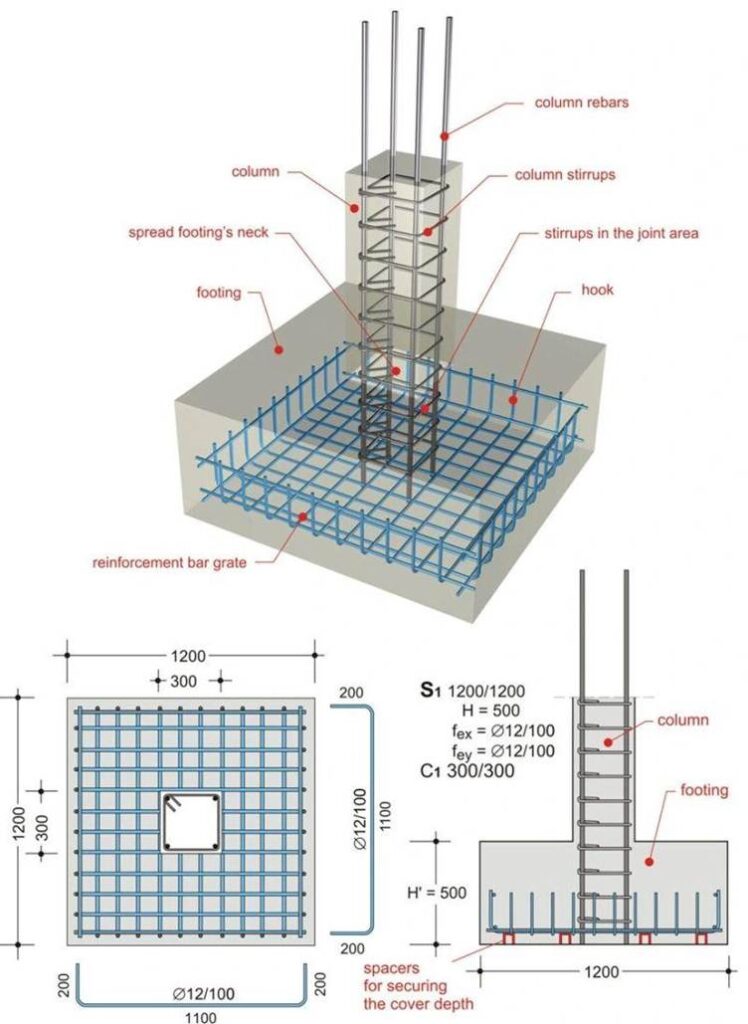

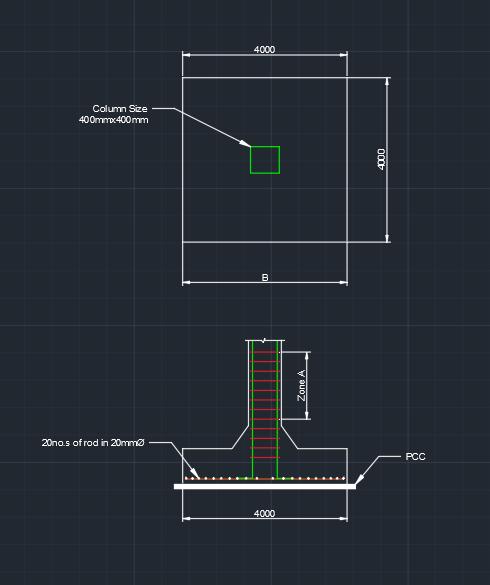

1. Isolated Footing

4

An isolated footing supports a single column and is one of the most commonly used foundations in residential and commercial buildings.

Suitable For

• Individual RCC columns
• Low-rise buildings
• Strong soil conditions

Advantages

• Economical
• Easy to construct
• Requires less excavation
• Faster construction

Disadvantages

• Not suitable for weak soil
• Unsuitable for closely spaced columns

Typical Shape

• Square
• Rectangular
• Circular
• Stepped footing

2. Combined Footing

A combined footing supports two or more columns using a single footing.

Used When

• Columns are close together
• Property line restrictions exist
• Individual footings overlap

Advantages

• Uniform load distribution
• Cost-effective
• Suitable near property boundaries

Disadvantages

• More reinforcement required
• Complex design

3. Strap Footing

A strap footing consists of two isolated footings connected by a reinforced concrete beam called a strap beam.

Applications

• Edge columns
• Boundary walls
• Limited construction space

Advantages

• Prevents eccentric loading
• Economical solution
• Improves stability

Limitations

• Not suitable for weak soil
• Design requires careful analysis

4. Strip Footing

Strip footing is a continuous footing that supports load-bearing walls.

Common Uses

• Masonry structures
• Compound walls
• Residential houses

Advantages

• Simple construction
• Low cost
• Uniform load transfer

Disadvantages

• Not suitable for heavy structures
• Limited application in poor soil

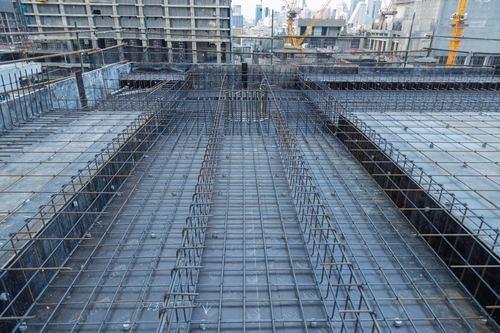

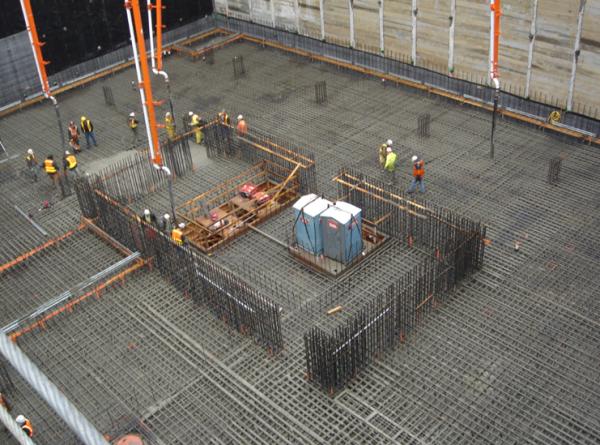

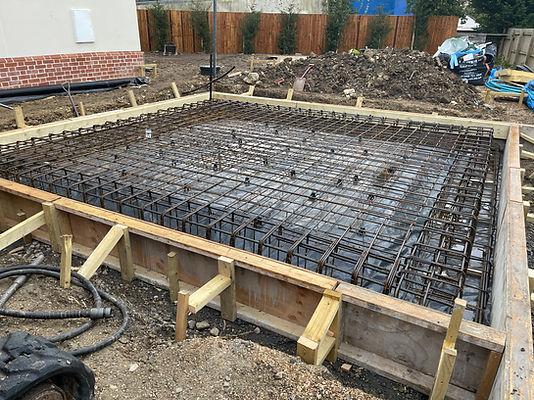

5. Raft (Mat) Foundation

A raft foundation is a large reinforced concrete slab supporting the entire building.

Instead of individual footings, one large slab distributes the load over the whole area.

Suitable For

• Soft soil
• High-rise buildings
• Heavy industrial structures
• Basement construction

Advantages

• Reduces differential settlement
• Supports heavy loads
• Excellent for weak soil
• Good earthquake performance

Disadvantages

• High construction cost
• Requires skilled workmanship
• Large quantity of concrete and steel

6. Grillage Foundation

A grillage foundation consists of steel or reinforced concrete beams arranged in layers.

Applications

• Steel columns
• Transmission towers
• Heavy industrial equipment

Advantages

• High load capacity
• Reduces pressure on soil

Disadvantages

• Costly
• Requires corrosion protection

Types of Deep Foundations

Deep foundations transfer structural loads to stronger soil or rock located at greater depths.

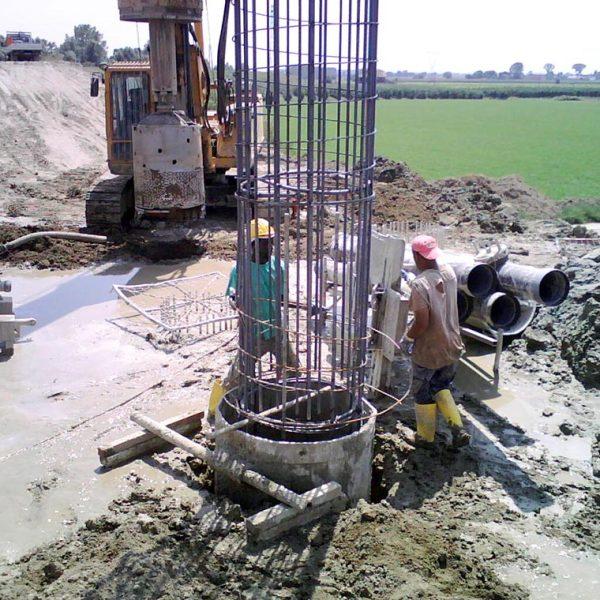

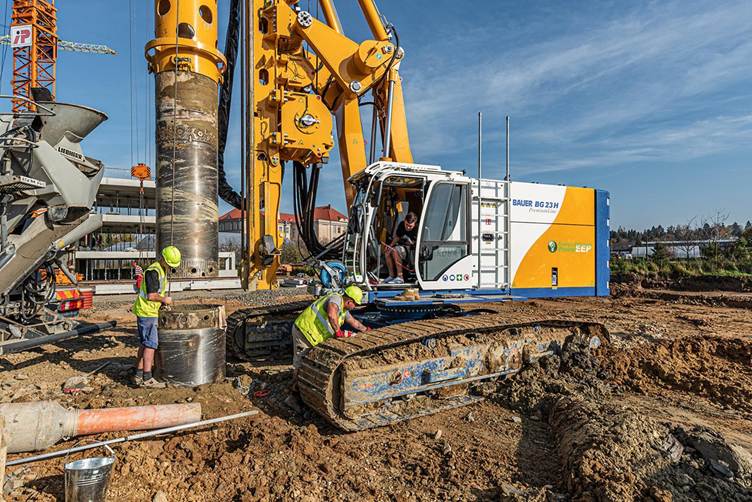

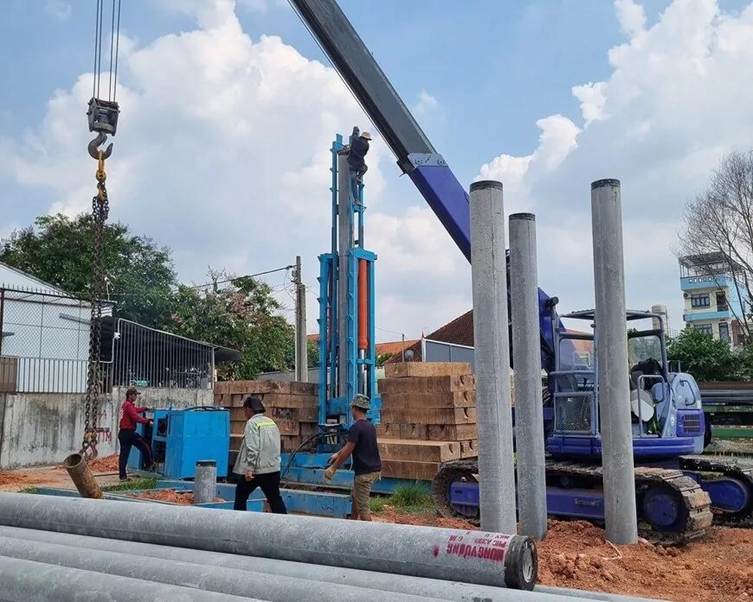

1. Pile Foundation

Pile foundations are long slender members driven or bored into the ground.

Loads are transferred through:

• End bearing
• Skin friction
• Combination of both

Types of Piles

Based on Material

• Reinforced Concrete Pile
• Steel Pile
• Timber Pile
• Composite Pile

Based on Installation

• Driven Pile
• Bored Cast-in-Situ Pile
• Screw Pile

Based on Load Transfer

• End Bearing Pile
• Friction Pile
• Combined Pile

Advantages

• Suitable for weak soil
• Supports very heavy loads
• Excellent for waterlogged areas
• Ideal for bridges

Disadvantages

• High construction cost
• Requires specialized equipment
• Noise during driving

2. Pier Foundation

Pier foundations use large diameter cylindrical columns to transfer loads.

Applications

• Bridges
• Elevated structures
• Industrial buildings

Advantages

• High load capacity
• Less vibration than piles

Disadvantages

• Expensive
• Time-consuming

3. Caisson Foundation

Caisson foundations are hollow watertight structures sunk into the ground or underwater.

Common Applications

• River bridges
• Ports
• Dams
• Offshore structures

Advantages

• Suitable underwater
• High stability

Disadvantages

• Very expensive
• Complex construction

Foundation Selection Criteria

Choosing the right foundation depends on several engineering factors.

Factor	Influence
Soil Bearing Capacity	Determines foundation size
Building Load	Influences depth and type
Groundwater Level	Affects construction method
Adjacent Structures	Controls excavation
Seismic Zone	Requires earthquake-resistant design
Construction Cost	Impacts feasibility
Site Conditions	Determines equipment access

Soil Bearing Capacity and Foundation Selection

SBC (kN/m²)	Recommended Foundation
Above 300	Isolated Footing
200–300	Combined Footing
100–200	Raft Foundation
Below 100	Pile Foundation

Note: Actual selection should always be based on a detailed geotechnical investigation.

Foundation Construction Process

The general sequence of foundation construction includes:

1. Site survey
2. Soil investigation
3. Setting out
4. Excavation
5. PCC (Plain Cement Concrete)
6. Reinforcement placement
7. Formwork
8. Concrete pouring
9. Curing
10. Backfilling
11. Compaction

Common Foundation Failures

Poor construction or improper design can lead to foundation failures.

Common Problems

• Differential settlement
• Foundation cracks
• Soil erosion
• Water seepage
• Excessive settlement
• Tilting
• Structural instability

Causes

• Poor soil investigation
• Low-quality concrete
• Improper reinforcement
• Inadequate drainage
• Overloading
• Poor workmanship

Best Practices for Foundation Construction

To ensure a durable and safe foundation:

• Conduct a thorough soil investigation before design.
• Select the foundation type based on geotechnical and structural requirements.
• Use high-quality concrete and reinforcement.
• Maintain proper concrete cover to protect steel from corrosion.
• Ensure accurate excavation dimensions and levels.
• Provide effective drainage to prevent water accumulation.
• Follow approved structural drawings and specifications.
• Cure concrete adequately to achieve the required strength.
• Inspect reinforcement, formwork, and footing levels before concreting.
• Perform quality control tests on materials and concrete during construction.

Comparison of Foundation Types

Foundation Type	Cost	Load Capacity	Suitable Soil	Construction Speed
Isolated Footing	Low	Medium	Strong Soil	Fast
Combined Footing	Medium	Medium	Medium Soil	Moderate
Strip Footing	Low	Medium	Good Soil	Fast
Strap Footing	Medium	Medium	Good Soil	Moderate
Raft Foundation	High	High	Weak Soil	Moderate
Pile Foundation	Very High	Very High	Very Weak Soil	Slow
Pier Foundation	High	High	Weak Soil	Slow
Caisson Foundation	Very High	Very High	Water Bodies	Slow

Importance of Soil Investigation

A foundation is only as good as the soil beneath it. Before designing any foundation, a geotechnical investigation should be carried out to determine:

• Soil type and stratification
• Safe Bearing Capacity (SBC)
• Groundwater table
• Settlement characteristics
• Shear strength
• Presence of expansive or collapsible soils

This information enables engineers to choose the safest and most economical foundation system while minimizing the risk of settlement or structural failure.

Frequently Asked Questions (FAQs)

1. Which foundation is best for residential buildings?

For most low-rise residential buildings constructed on good soil, an isolated footing is the most economical and commonly used foundation.

2. What is the difference between shallow and deep foundations?

Shallow foundations transfer loads to soil close to the surface, whereas deep foundations transfer loads to deeper, stronger soil layers or bedrock using elements such as piles or piers.

3. When is a raft foundation preferred?

A raft foundation is preferred when the soil has low bearing capacity, columns are closely spaced, or differential settlement needs to be minimized.

4. Why are pile foundations used?

Pile foundations are used where surface soils are weak, compressible, or waterlogged, and stronger soil or rock is available at greater depths.

5. What factors influence foundation selection?

The key factors include soil bearing capacity, building load, groundwater level, seismic considerations, site conditions, construction cost, and local building regulations.

Conclusion

Foundations are the backbone of every building, ensuring that structural loads are safely transferred to the ground while maintaining stability and durability. The choice between shallow and deep foundations depends on soil conditions, structural requirements, environmental factors, and project budget.

Isolated, strip, combined, and raft foundations are widely used for low- to medium-rise buildings where surface soils are adequate. In contrast, pile, pier, and caisson foundations are essential for heavy structures, high-rise buildings, bridges, and sites with poor soil conditions.

A successful foundation system begins with a detailed soil investigation, careful structural design, and strict quality control during construction. By selecting the appropriate foundation type and following sound engineering practices, civil engineers can ensure long-lasting, safe, and efficient structures.
